INFINI-MIX Dynamic Mixing & Blending Solutions

Continuous, In-Line, Single Pass Mixing Technology

The Elongated Screws, or L Series, is designed for high volume, low pressure applications. The extended screws with large gaps allow for large solids to pass gently though the pump with little to no degradation. We can pass solids up to 67+mm in diameter—that’s a whole strawberry or a small tomato!

L Series Pumps

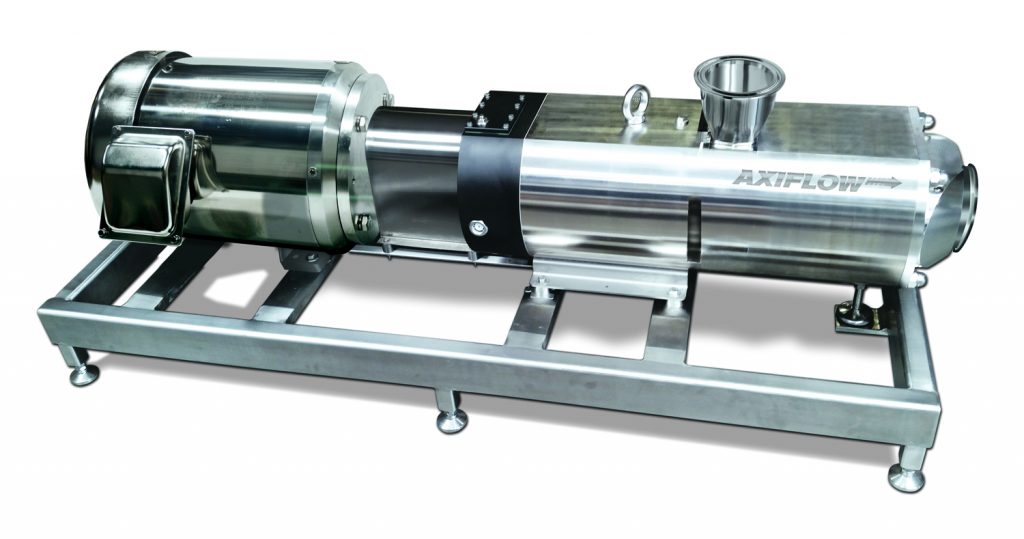

Axiflow Elongated Screw (L Series) Twin Screw Pumps

The elongated screw pumps have longer shafts and screws than the traditional STS Series twin screw pumps.  This means mechanical seals, elastomers and the complete bearing housing all use parts in common with the standard pumps. This translates to less spare parts inventory.

In addition to higher volume displacement, the larger screw pitches give us the ability to pass extremely large solids.

STS Series Maximum Particle Size

L Series Maximum Particle Size

STSC50

STSC70

STSC90

STSC125

16mm

20mm

26mm

45mm

STSC50L

STSC70L

STSC90L

STSC125L

25mm

30mm

45mm

67mm
