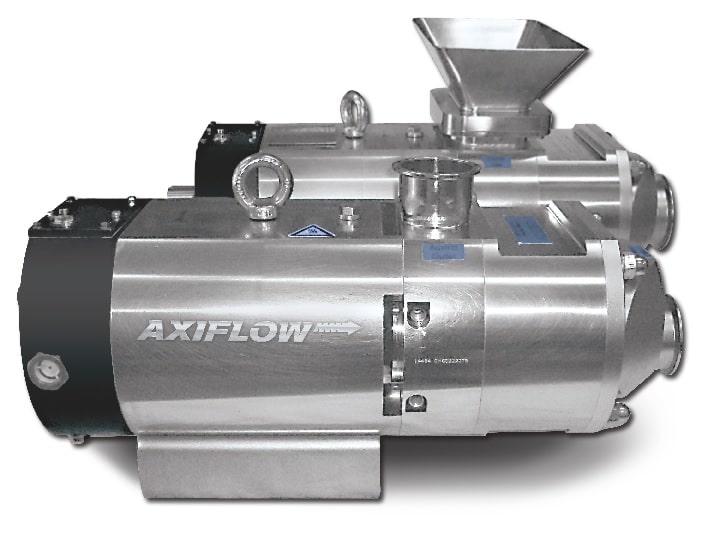

Axiflow HopperPump (H Series) Twin Screw Pumps

The Axiflow HopperPump™ was designed for heavily viscous doughs and meat slurries as well as for large solids in a light viscosity carrier fluid, such as soups and salsas.

The HopperPump™ design touts a wider intermediate flange to accommodate a large, open throat. The screws are longer and extend to the back of the intermediate flange. However, the most unique feature of the HopperPump™ is the regressive screws which allow for large solids to fall directly into the screw cavities. This is protects delicate inclusions and also keeps light carrier fluid slurries from “de-watering” the product when transferring.

The HopperPump™ comes in (4) primary sizes ranging from 1.5″ connection up to 10″ connections and the ability to pass solids in excess of 2″ in diameter.

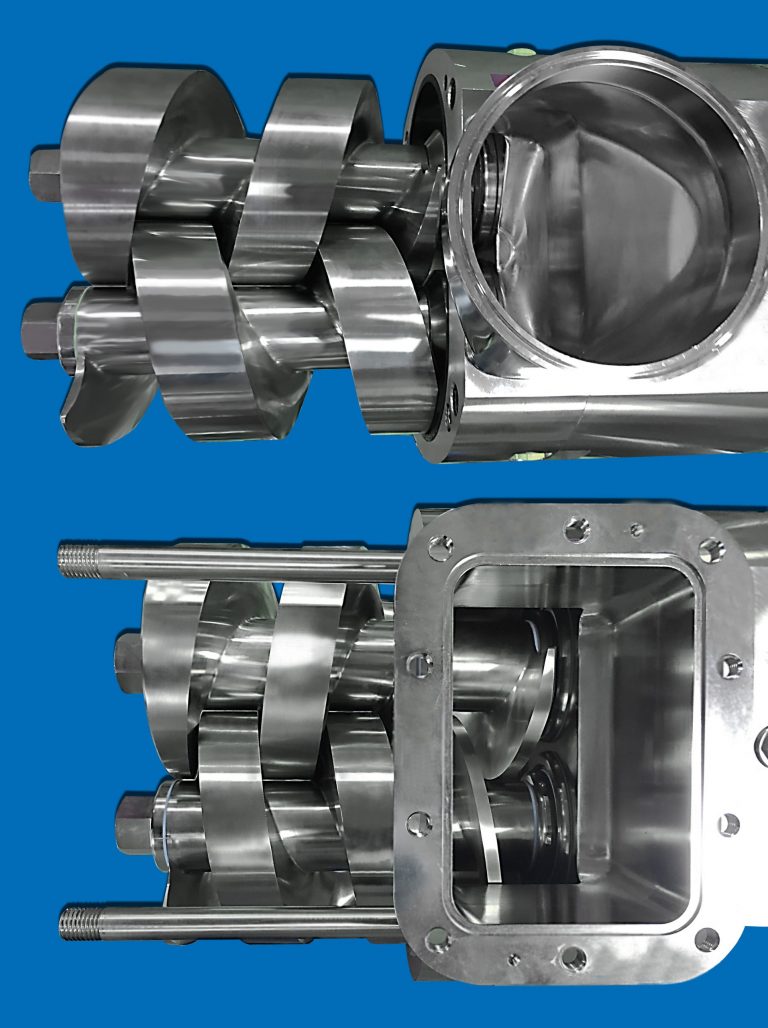

Axiflow HopperPump Regressive Screws

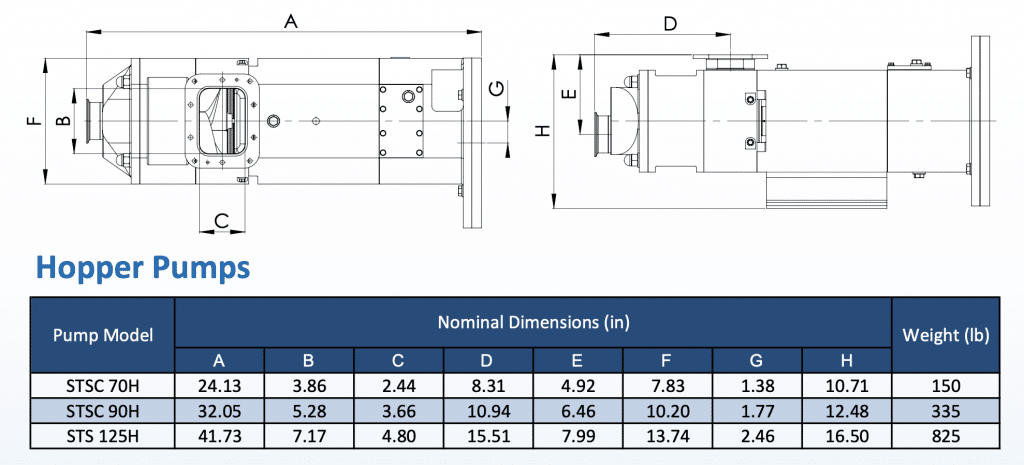

HopperPump Dimensional Chart
